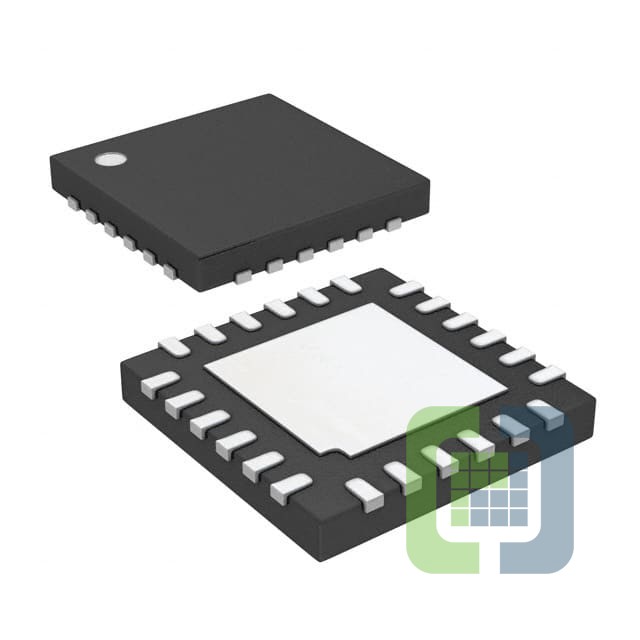

LTC3862EUH-1#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST/SEPIC 24QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3862EUH-1#PBF Datasheet
-
ECAD Model
- Share
In Stock: 242
Can ship immediately
Pricing:
- 1$7.9
- 25$5.24647
- 100$4.33806
- 250$4.12119
- 500$4.0282
- 2,500$3.87328
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, SEPIC
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):8.5V ~ 36V
- Frequency - Switching:75kHz ~ 500kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Phase Control, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-WQFN Exposed Pad
- Supplier Device Package:24-QFN (5x5)
