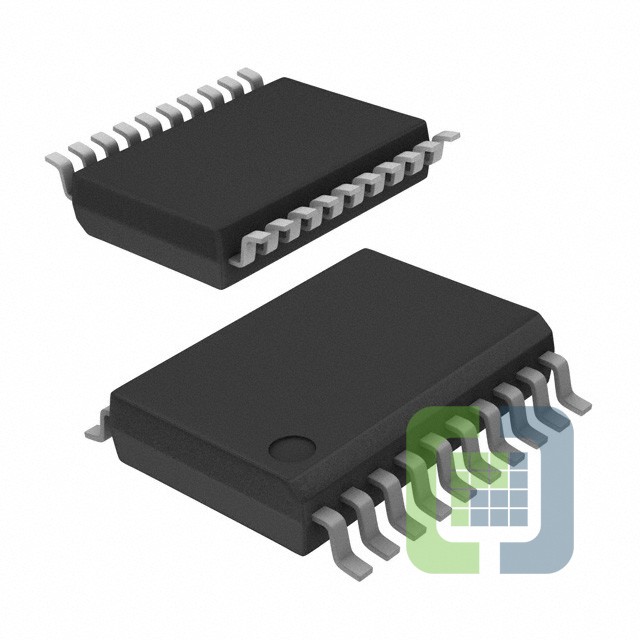

MAX767CAP+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20SSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX767CAP+ Datasheet
-
ECAD Model
- Share
In Stock: 65,716
Can ship immediately
Pricing:
- 1$9.18
- 10$8.29647
- 66$7.91023
- 132$6.86838
- 264$6.55966
- 528$5.98088
- 1,056$5.20915
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V
- Frequency - Switching:200kHz, 300kHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:20-SSOP
