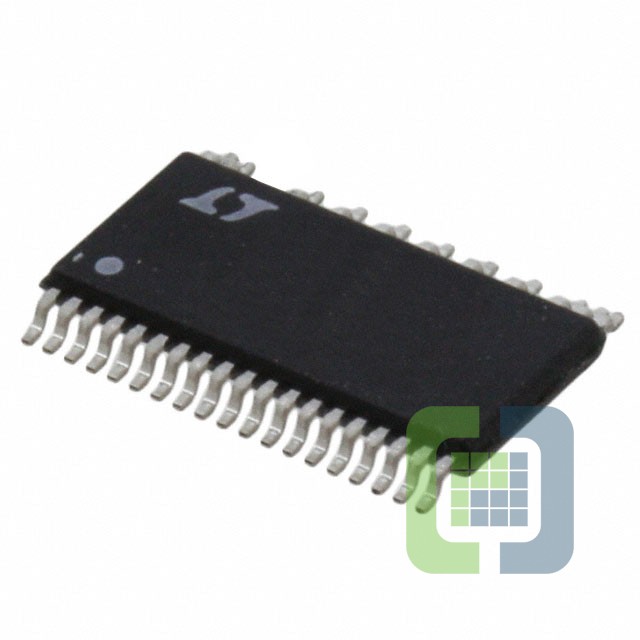

LT8705MPFE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK-BOOST 38TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LT8705MPFE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
- 1$34.51
- 25$27.61201
- 100$22.5023
- 250$21.99473
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):2.8V ~ 80V
- Frequency - Switching:100kHz ~ 400kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Soft Start
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:38-PowerTFSOP (0.173", 4.40mm Width), 31 Leads
- Supplier Device Package:38-TSSOP-EP
