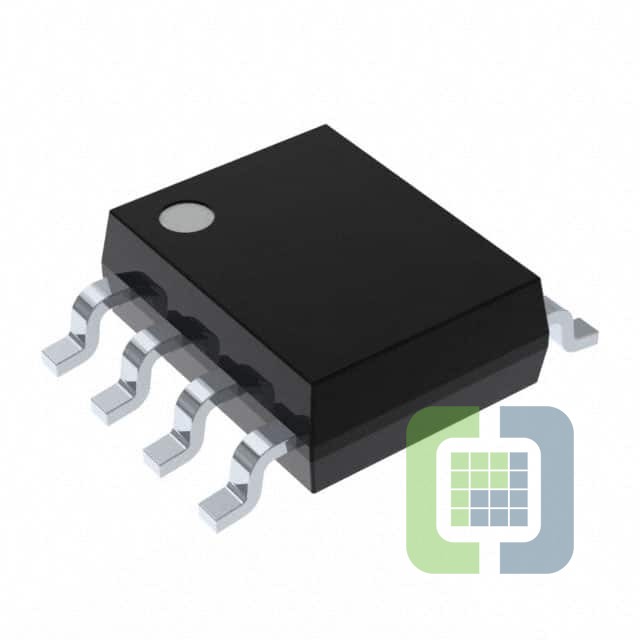

MAX1966ESA+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1966ESA+ Datasheet
-
ECAD Model
- Share
In Stock: 5,443,220
Can ship immediately
Pricing:
- 1$3.2
- 10$3.0396
- 25$2.21845
- 50$2.10753
- 100$1.4886
- 250$1.46514
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.7V ~ 5.5V
- Frequency - Switching:102kHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
