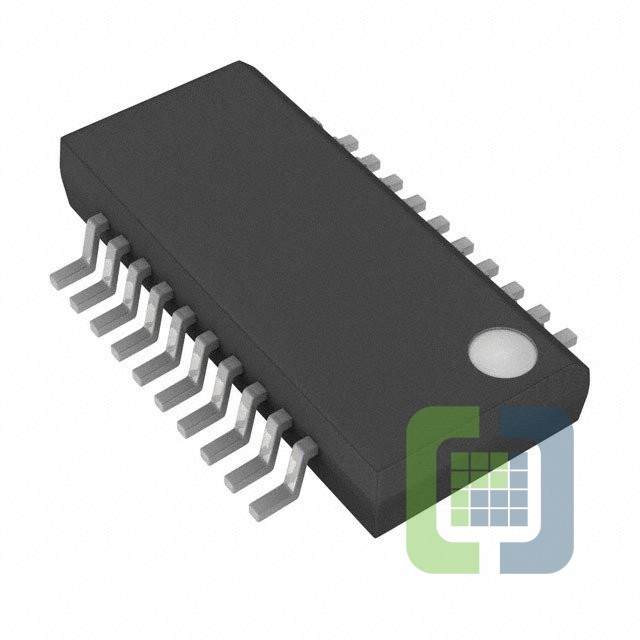

MAX1960EEP+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1960EEP+ Datasheet
-
ECAD Model
- Share
In Stock: 30,998
Can ship immediately
Pricing:
- 1$4.8
- 10$4.31094
- 50$4.07547
- 100$3.53208
- 250$3.35094
- 500$3.00679
- 1,000$2.53585
- 2,500$2.40906
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.35V ~ 5.5V
- Frequency - Switching:500kHz, 1MHz
- Duty Cycle (Max):92%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:20-QSOP
