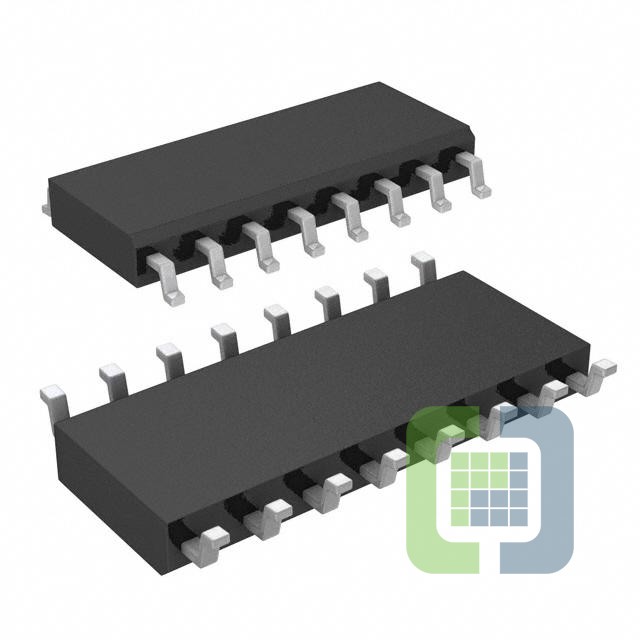

MAX797CSE+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOP 16SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX797CSE+ Datasheet
-
ECAD Model
- Share
In Stock: 27,407
Can ship immediately
Pricing:
- 1$10.97
- 10$10.08383
- 50$9.66553
- 100$8.51611
- 250$8.09814
- 500$7.57568
- 1,000$6.94873
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost, Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 30V
- Frequency - Switching:150kHz, 300kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Pulse Skipping, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
