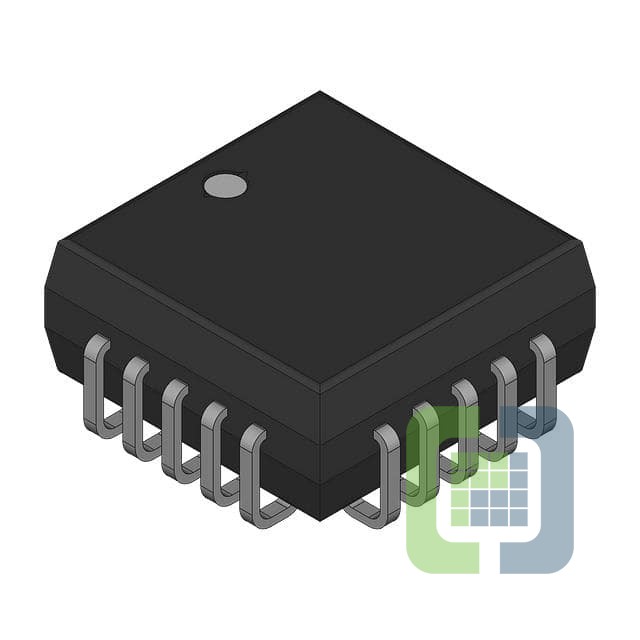

UC3842Q
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- Description1A, 500KHZ BIPOLAR, PQCC20
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 1,151
Can ship immediately
Pricing:
- 1$0.49
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Buck, Buck-Boost, Flyback, Forward
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):-
- Frequency - Switching:Up to 500kHz
- Duty Cycle (Max):97%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-LCC (J-Lead)
- Supplier Device Package:20-PLCC (9x9)
