TL598CDG4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 535
Can ship immediately
Pricing:
- 1$0.71
- 440$0.71
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7V ~ 40V
- Frequency - Switching:100kHz
- Duty Cycle (Max):45%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Dead Time Control, Frequency Control
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount

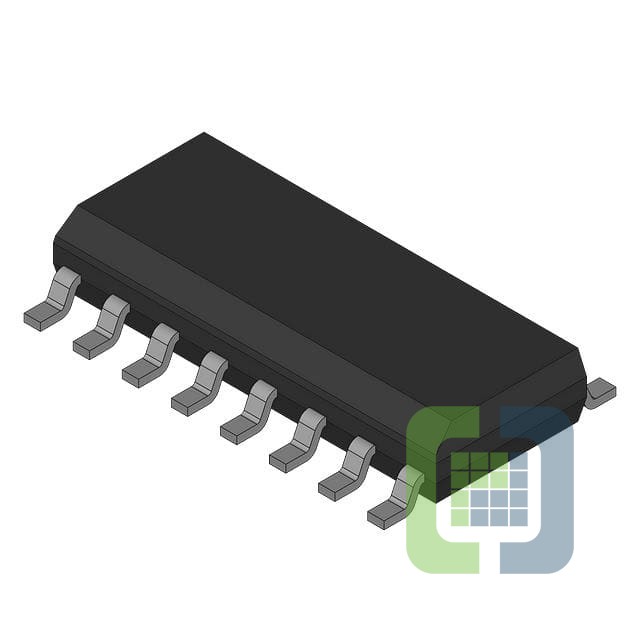

- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
