CS51221ED16
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet CS51221ED16 Datasheet
-
ECAD Model
- Share
In Stock: 588
Can ship immediately
Pricing:
- 1$0.8
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.8V ~ 15V
- Frequency - Switching:1MHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

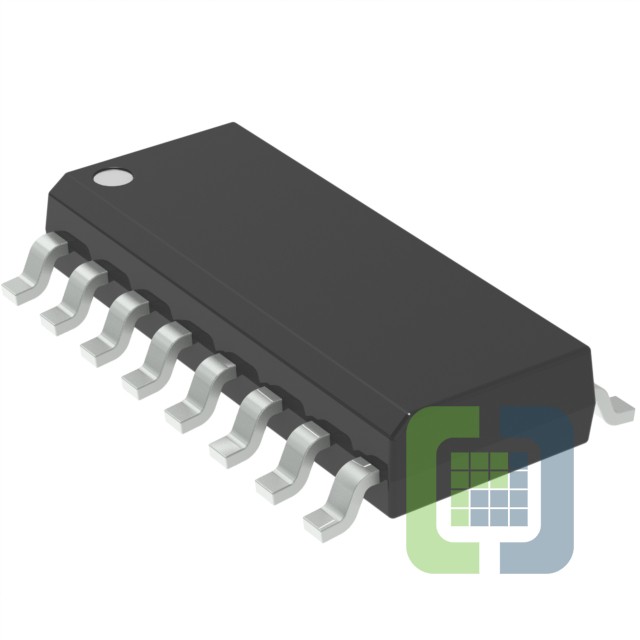

- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
