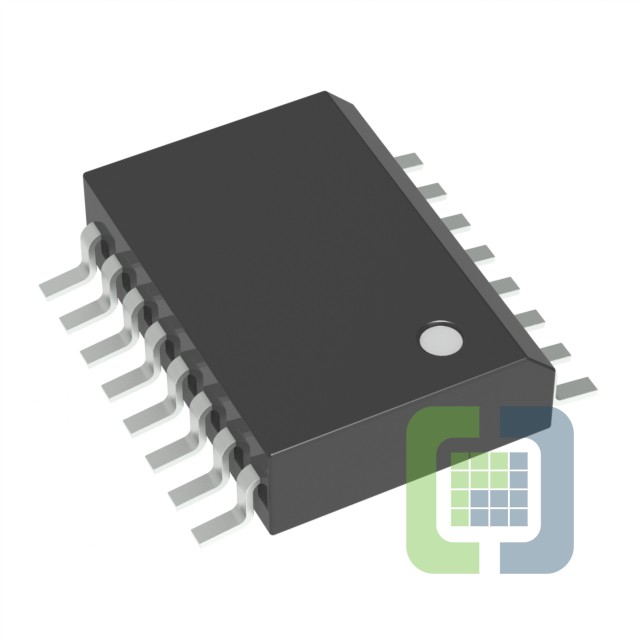

MC33067DW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MC33067DW Datasheet
-
ECAD Model
- Share
In Stock: 1,036
Can ship immediately
Pricing:
- 1$0.9
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.6V ~ 20V
- Frequency - Switching:2.05MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:16-SOIC
