LM5020SD-1
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 314
Can ship immediately
Pricing:
- 1$1.09
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 15V
- Frequency - Switching:200kHz ~ 630kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

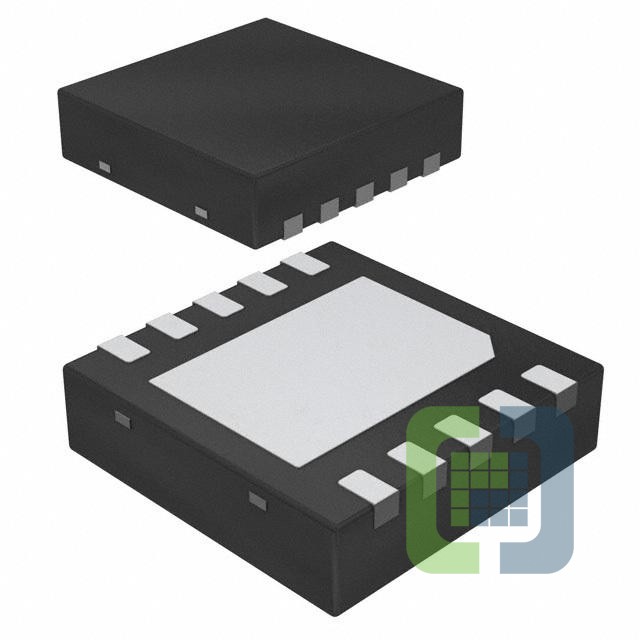

- Package / Case:10-WDFN Exposed Pad
- Supplier Device Package:10-WSON (4x4)
