ISL6401CR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL6401CR Datasheet
-
ECAD Model
- Share
In Stock: 214
Can ship immediately
Pricing:
- 1$1.72
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V
- Frequency - Switching:50kHz ~ 500kHz
- Duty Cycle (Max):48%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

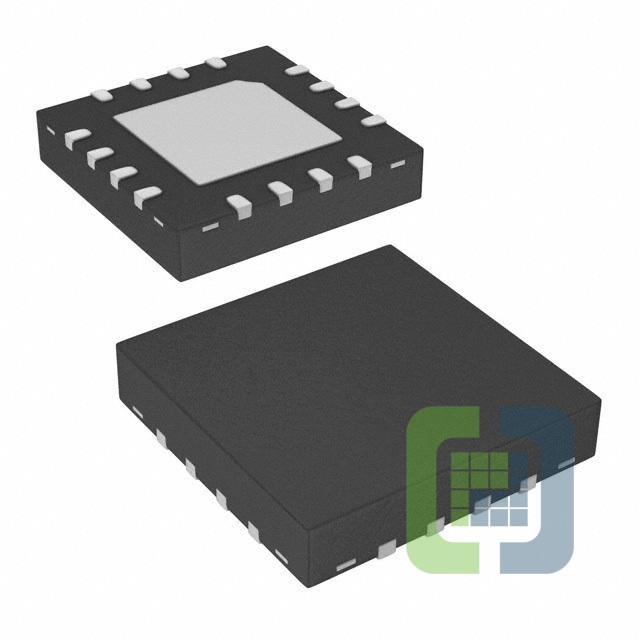

- Package / Case:16-VQFN Exposed Pad
- Supplier Device Package:16-QFN (4x4)
