In Stock: 244

Can ship immediately

Pricing:
  • 1$2.89
  • 140$2.89

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Output Type:Transistor Driver
  • Function:Step-Up/Step-Down
  • Output Configuration:Positive, Isolation Capable
  • Topology:Flyback, Forward Converter
  • Number of Outputs:1
  • Output Phases:1
  • Voltage - Supply (Vcc/Vdd):8.5V ~ 14.5V



  • Frequency - Switching:250kHz
  • Duty Cycle (Max):74%
  • Synchronous Rectifier:Yes
  • Clock Sync:Yes
  • Serial Interfaces:-
  • Control Features:Enable, On Time Control, Soft Start
  • Operating Temperature:-40°C ~ 105°C (TA)
  • Mounting Type:Surface Mount

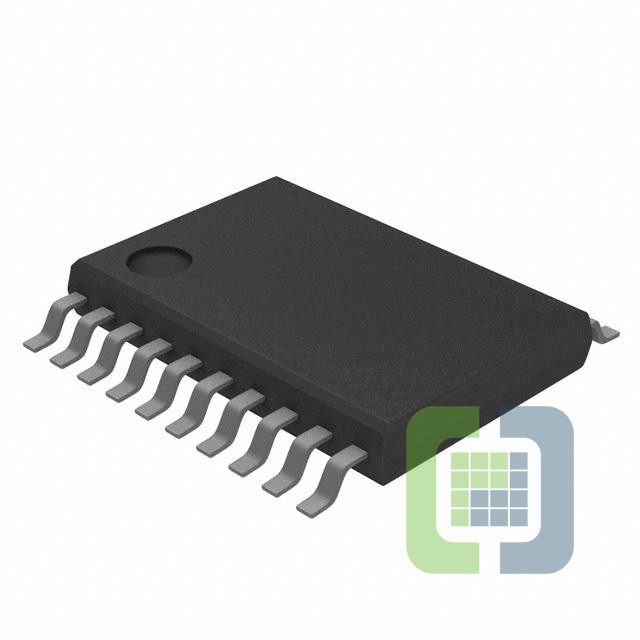

  • Package / Case:20-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package:20-TSSOP
