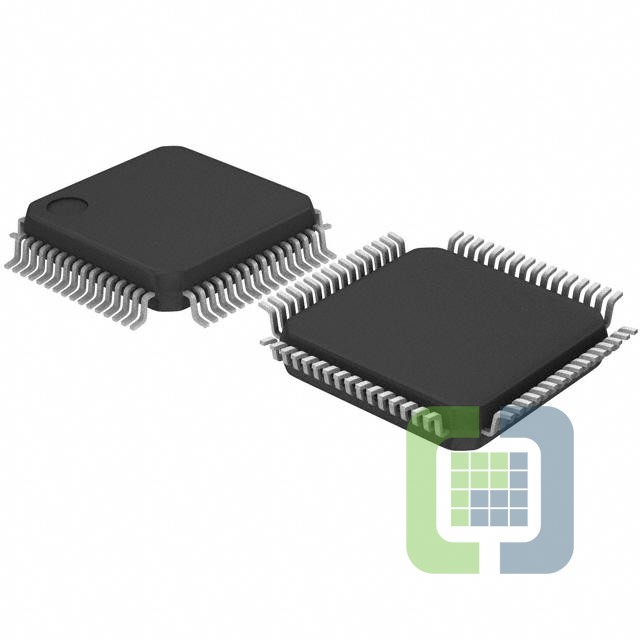

LTC7871HLWE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description6-PHASE BIDIRECTIONAL BUCK/BOOST
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$10.24
Quote It
Technical Details
- Series:PolyPhase®
- Package:Tray
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:6
- Output Phases:6
- Voltage - Supply (Vcc/Vdd):6V ~ 100V
- Frequency - Switching:60kHz ~ 750kHz
- Duty Cycle (Max):98%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:SPI
- Control Features:Enable, Power Good, Soft Start
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:64-LQFP Exposed Pad
- Supplier Device Package:64-eLQFP (10x10)
