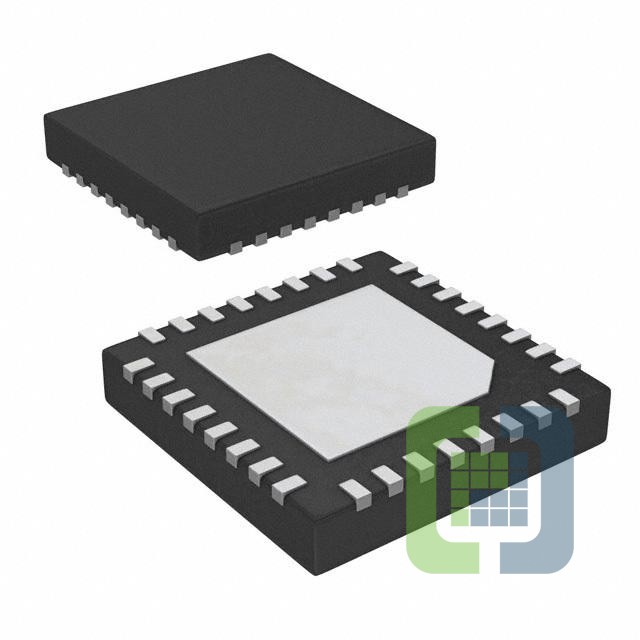

ISL8126IRZ
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 32QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL8126IRZ Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$5.93
- 10$5.32581
- 60$5.03491
- 120$4.36358
- 300$4.13981
- 540$3.71464
- 1,020$3.13283
- 2,520$2.97619
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):3V ~ 5.6V
- Frequency - Switching:150kHz ~ 1.5MHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:32-VFQFN Exposed Pad
- Supplier Device Package:32-QFN (5x5)
