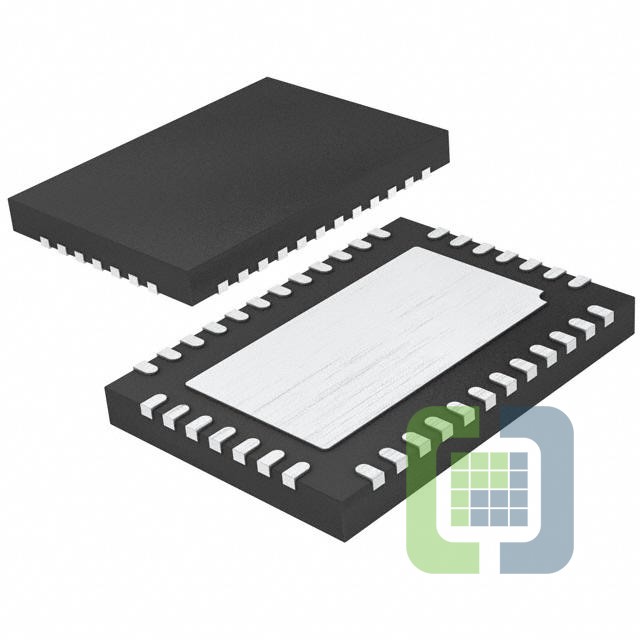

LTC3859AMPUHF#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 38QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3859AMPUHF#PBF Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$25.61
- 25$20.48881
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Buck-Boost, SEPIC
- Number of Outputs:3
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 38V
- Frequency - Switching:115kHz ~ 835kHz, 350kHz ~ 535kHz
- Duty Cycle (Max):99%, 100%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:38-WFQFN Exposed Pad
- Supplier Device Package:38-QFN (5x7)
