LM5030SD

Technical Details

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Output Type:Transistor Driver
• Function:Step-Up/Step-Down
• Output Configuration:Positive, Isolation Capable
• Topology:Full-Bridge, Half-Bridge, Push-Pull
• Number of Outputs:2
• Output Phases:1
• Voltage - Supply (Vcc/Vdd):14V ~ 90V

• Frequency - Switching:200kHz, 600kHz
• Duty Cycle (Max):50%
• Synchronous Rectifier:No
• Clock Sync:No
• Serial Interfaces:-
• Control Features:Frequency Control, Soft Start
• Operating Temperature:-40°C ~ 105°C (TA)
• Mounting Type:Surface Mount

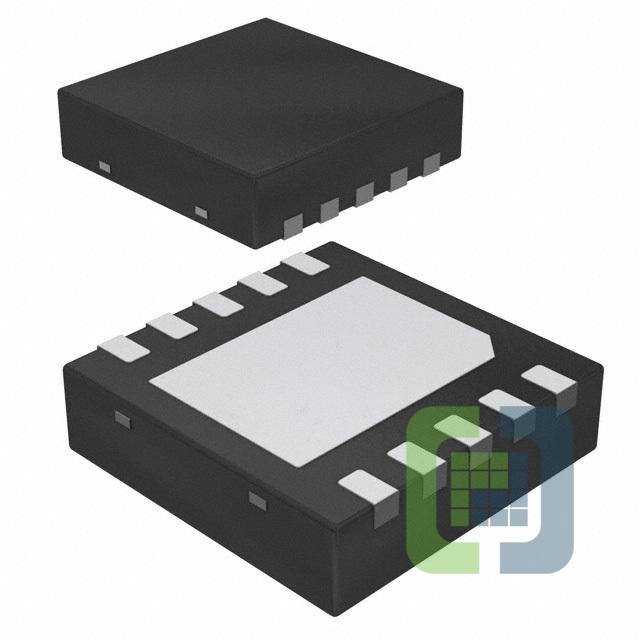

• Package / Case:10-WDFN Exposed Pad
• Supplier Device Package:10-WSON (4x4)
