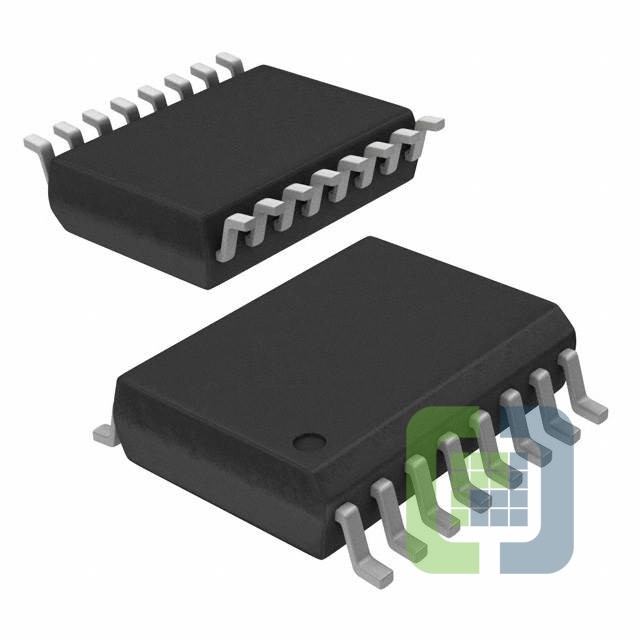

UC3825ADWG4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUC3825A HIGH SPEED PWM CONTROLLE
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$5.18
- 80$5.18
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.4V ~ 22V
- Frequency - Switching:400kHz ~ 1MHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Ramp, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:16-SOIC
