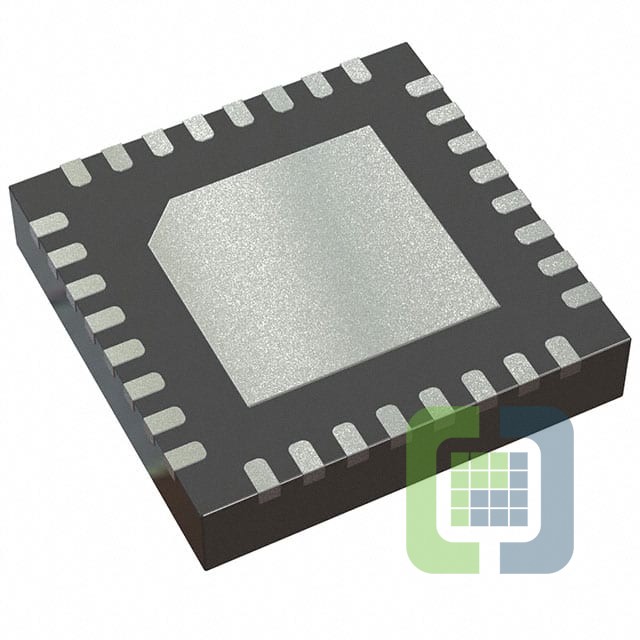

MAX15301AA02+CJK
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK PMBUS 32TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX15301AA02+CJK Datasheet
-
ECAD Model
- Share
In Stock: 143
Can ship immediately
Pricing:
- 1$6.23
- 10$5.62973
- 60$5.36748
- 120$4.66057
- 300$4.45108
- 540$4.05834
- 1,020$3.53468
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 14V
- Frequency - Switching:300kHz ~ 1MHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:PMBus
- Control Features:Current Limit, Enable, Power Good
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:32-WFQFN Exposed Pad
- Supplier Device Package:32-TQFN (5x5)
