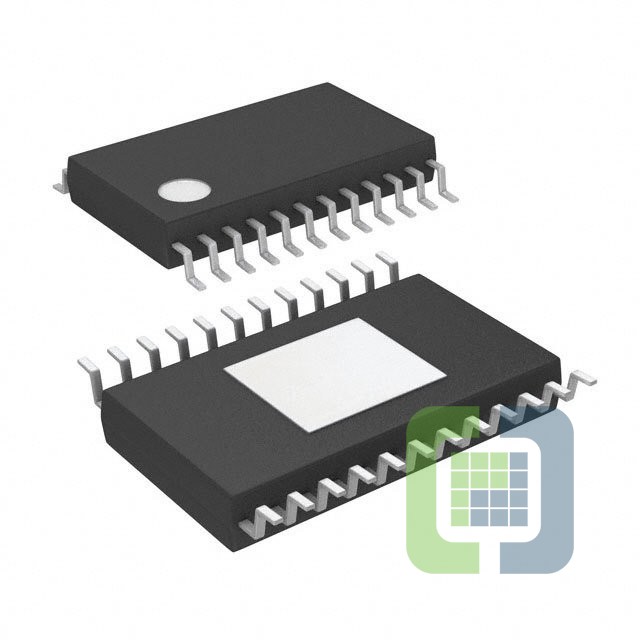

LTC7801HFE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR SYNC BUCK 24TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC7801HFE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$11.31
- 25$7.51229
- 100$6.21133
- 250$5.90077
- 500$5.76767
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4V ~ 140V
- Frequency - Switching:50kHz ~ 900kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:24-TSSOP
