KA3525A
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR 16DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet KA3525A Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$0.95
- 10$0.83843
- 100$0.6428
- 500$0.50814
- 1,000$0.40651
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:-
- Output Configuration:Positive
- Topology:-
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7V ~ 20V
- Frequency - Switching:60Hz ~ 430kHz
- Duty Cycle (Max):49%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Through Hole

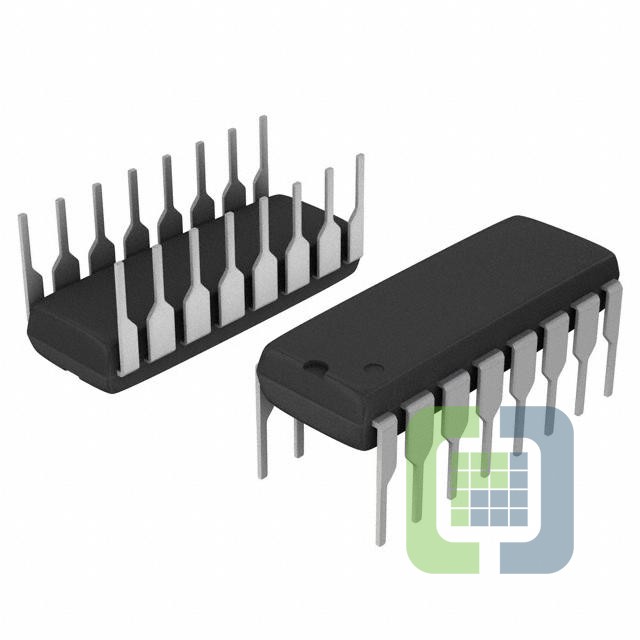

- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
