LTC3824IMSE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 10MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3824IMSE#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$6.4
- 2,500$3.14066
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4V ~ 60V
- Frequency - Switching:200kHz ~ 600kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

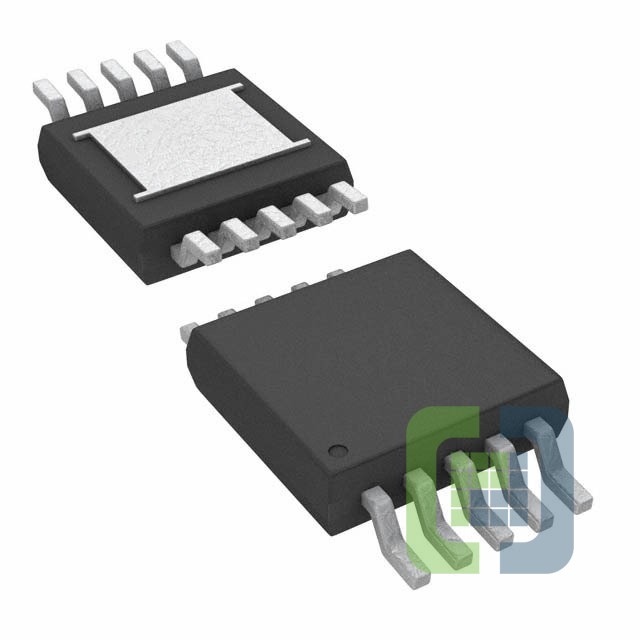

- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:10-MSOP-EP
