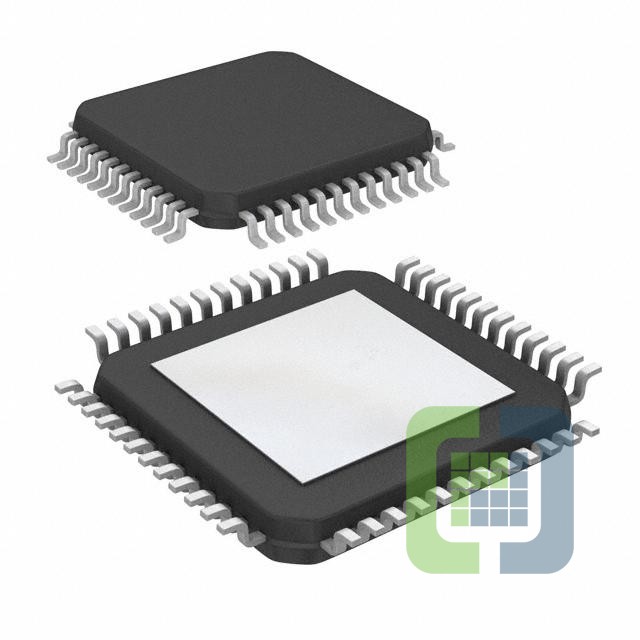

LTC3777ILXE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description150V VIN AND VOUT SYNCHRONOUS 4-
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3777ILXE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$19.46
- 25$15.56757
- 100$12.68687
- 250$12.40071
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 150V
- Frequency - Switching:50kHz ~ 600kHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:48-LQFP Exposed Pad
- Supplier Device Package:48-eLQFP (7x7)
