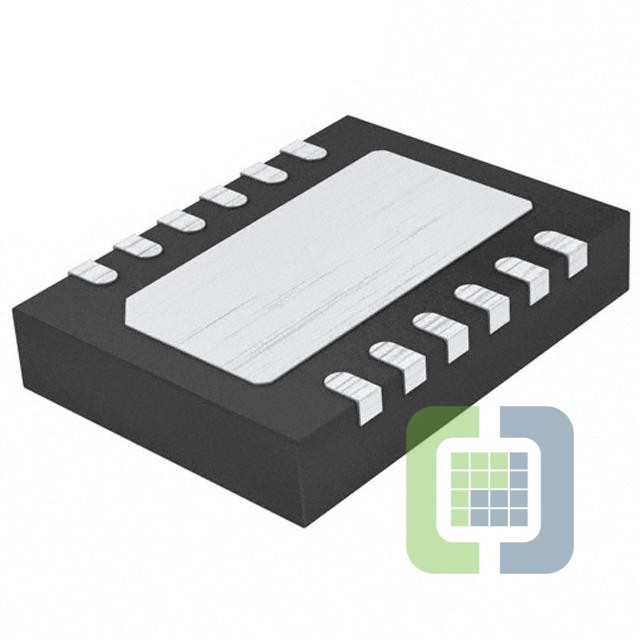

LTC3864HDE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 12DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3864HDE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$6.53
- 25$4.33869
- 100$3.58755
- 250$3.40818
- 500$3.33129
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.5V ~ 60V
- Frequency - Switching:50kHz ~ 850kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:12-WFDFN Exposed Pad
- Supplier Device Package:12-DFN (4x3)
