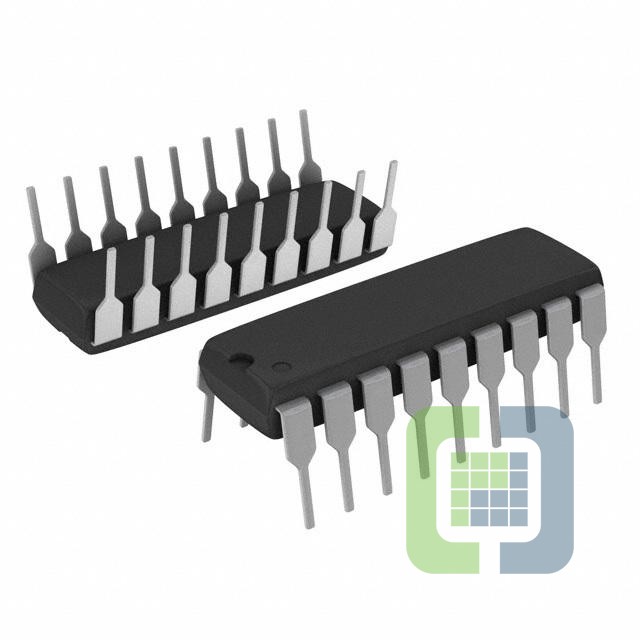

UC2841N
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 18DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$19.21
- 20$17.65031
- 40$16.91842
- 100$14.90656
- 500$13.26047
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Buck, Boost, Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 32V
- Frequency - Switching:500kHz
- Duty Cycle (Max):95%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start
- Operating Temperature:-25°C ~ 85°C (TA)
- Mounting Type:Through Hole
- Package / Case:18-DIP (0.300", 7.62mm)
- Supplier Device Package:18-PDIP
