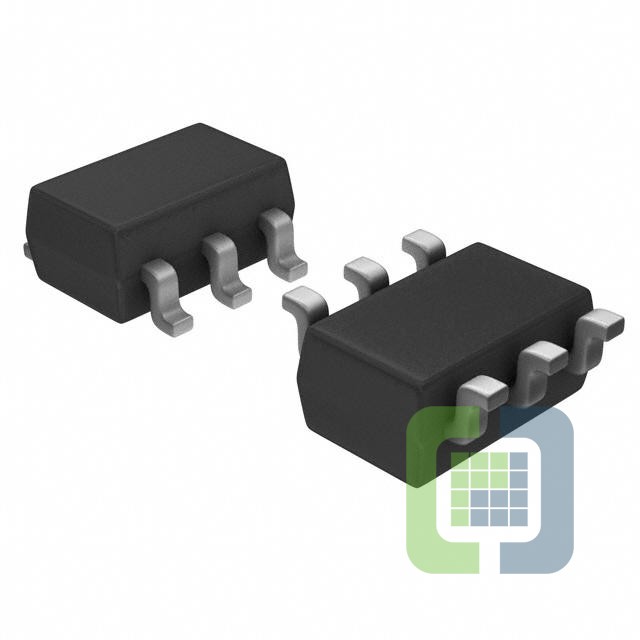

R1240N001B-TR-FE
RICOH Electronic Devices Co., LTD.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPWM STEP-DOWN DCDC CONVERTER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$1.94
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:PWM
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 30V
- Frequency - Switching:1.25MHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6
- Supplier Device Package:SOT-23-6W
