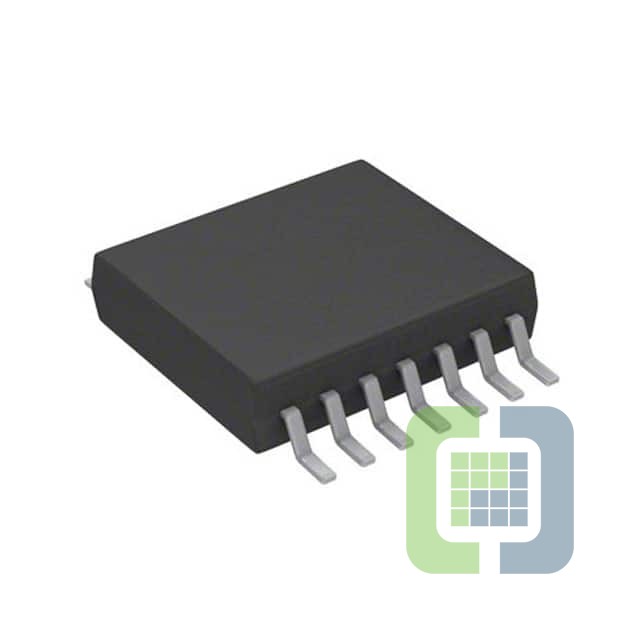

LM51561HPWPR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- Description2.2 MHZ WIDE INPUT NONSYNCHRONOU
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$2.62
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.97V ~ 60V
- Frequency - Switching:100kHz ~ 2.2MHz
- Duty Cycle (Max):93%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:14-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:14-HTSSOP
