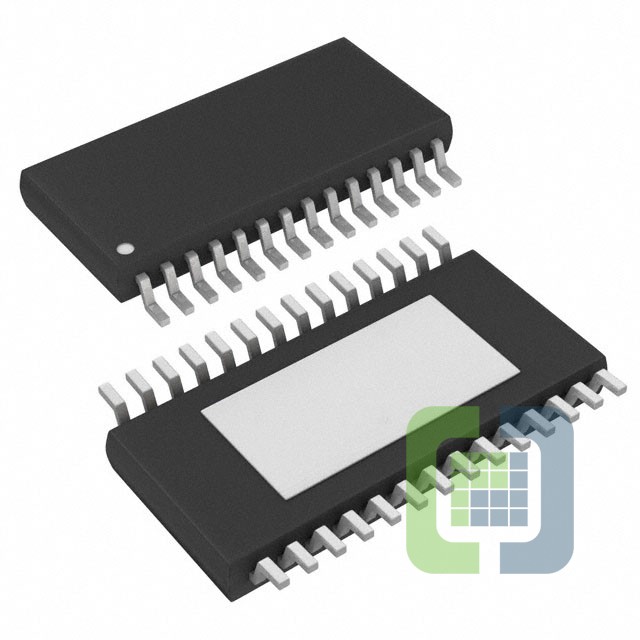

BD9540EFV-E2
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 28HTSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet BD9540EFV-E2 Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$1.60717
- 2,500$1.60717
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Not For New Designs
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7.5V ~ 20V
- Frequency - Switching:-
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable
- Operating Temperature:-20°C ~ 100°C (TA)
- Mounting Type:Surface Mount
- Package / Case:28-VSSOP (0.173", 4.40mm Width)
- Supplier Device Package:28-HTSSOP-B
