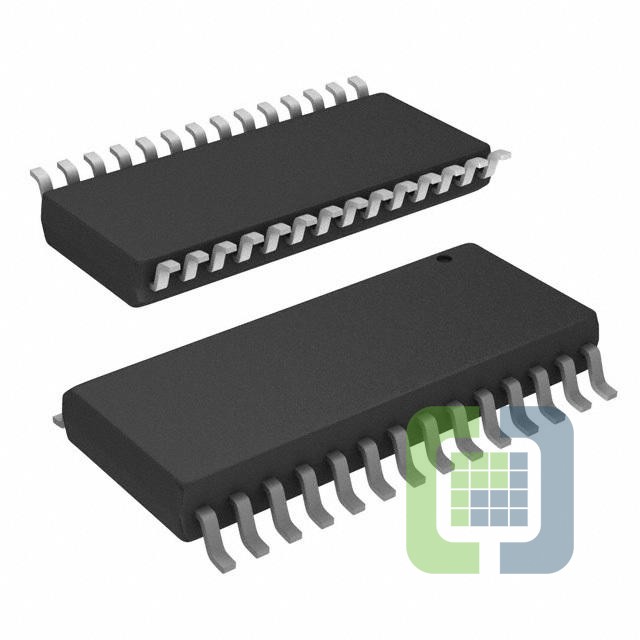

BD9536FV-E2
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 28SSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet BD9536FV-E2 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$2.05831
- 2,000$2.05831
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7.5V ~ 15V
- Frequency - Switching:200kHz ~ 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control
- Operating Temperature:-20°C ~ 100°C (TA)
- Mounting Type:Surface Mount
- Package / Case:28-LSSOP (0.220", 5.60mm Width)
- Supplier Device Package:28-SSOPB
