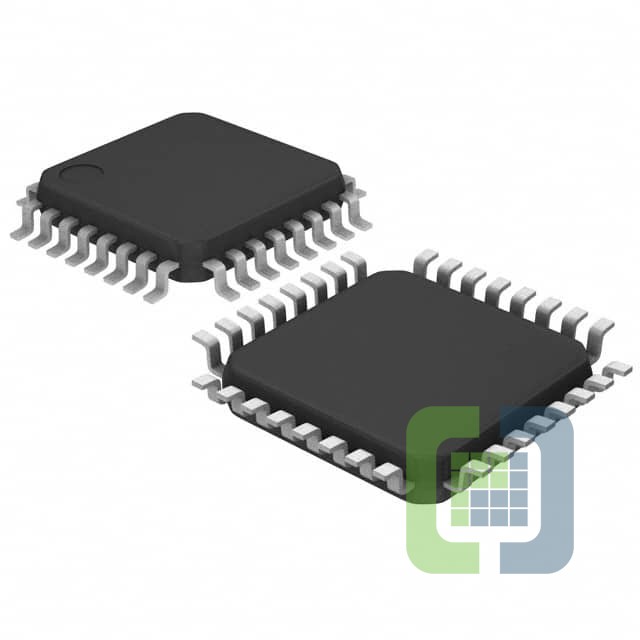

BA9706K
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 32QFP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet BA9706K Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$4.13559
- 1,000$4.13559
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:3
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.6V ~ 18V
- Frequency - Switching:514kHz, 790kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control
- Operating Temperature:-25°C ~ 75°C (TA)
- Mounting Type:Surface Mount
- Package / Case:32-LQFP
- Supplier Device Package:32-QFP (7x7)
