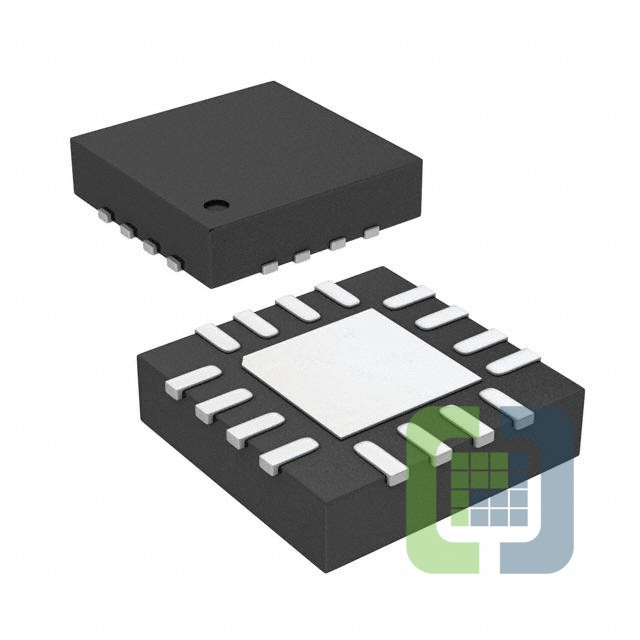

LTC7804IUD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLOW IQ SYNCHRONOUS BOOST CONTROL
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$6.04
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 40V
- Frequency - Switching:100kHz ~ 3MHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:-
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-WFQFN Exposed Pad
- Supplier Device Package:16-QFN (3x3)
