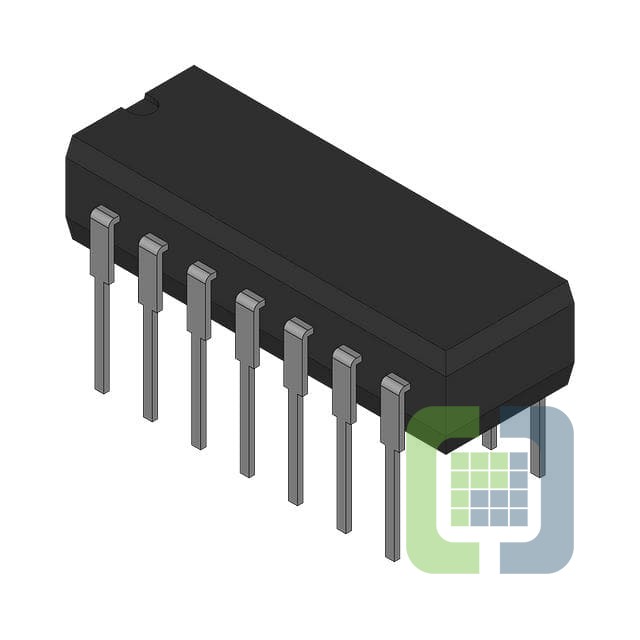

UC3824NG4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK/BOOST 16DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 132
Can ship immediately
Pricing:
- 1$10.8
- 50$10.8
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.4V ~ 30V
- Frequency - Switching:340kHz ~ 460kHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Ramp, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
