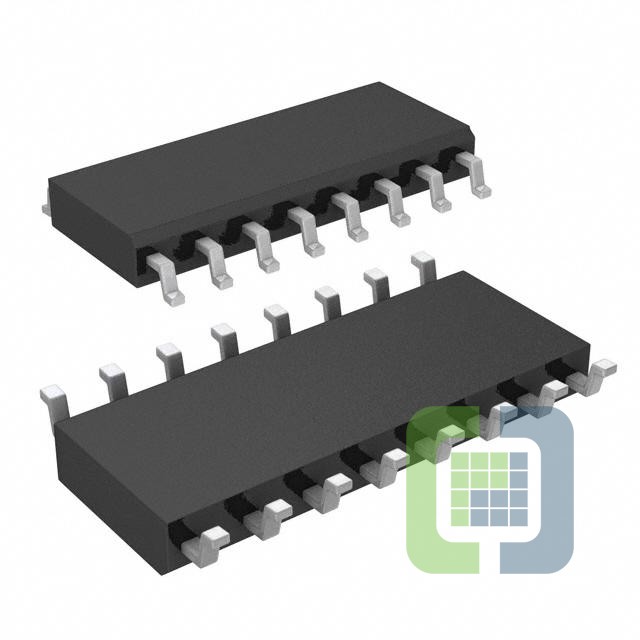

AZ7500CUMTR-GA
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 16SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 193
Can ship immediately
Pricing:
- 1$0.19519
- 4,000$0.19519
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7V ~ 36V
- Frequency - Switching:1kHz ~ 200kHz
- Duty Cycle (Max):45%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SO
