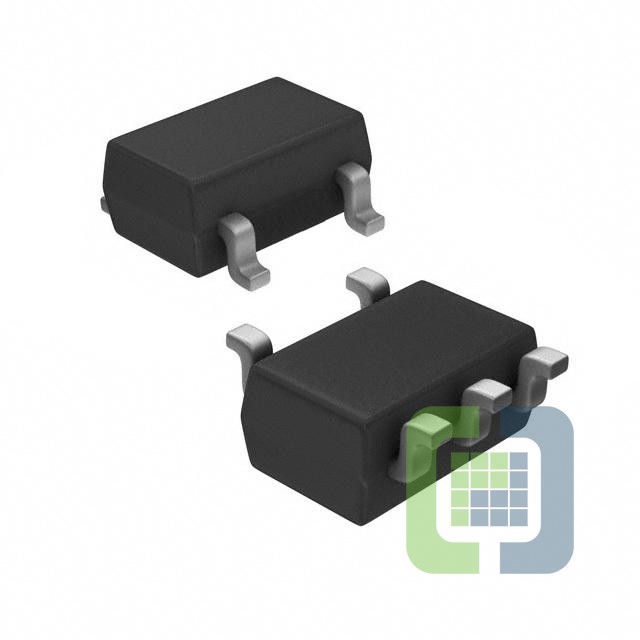

S-8520F15MC-BNAT2U
ABLIC U.S.A. Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK SOT23-5
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet S-8520F15MC-BNAT2U Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$0.42888
- 3,000$0.4259
- 6,000$0.40461
- 15,000$0.3894
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.5V ~ 16V
- Frequency - Switching:300kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
