S-8338ACIC-T8T1G
ABLIC U.S.A. Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST 8TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet S-8338ACIC-T8T1G Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$0.68561
- 3,000$0.68084
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Not For New Designs
- Output Type:Transistor Driver
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):1.8V ~ 6V
- Frequency - Switching:257.4kHz ~ 1.134MHz
- Duty Cycle (Max):88.5%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

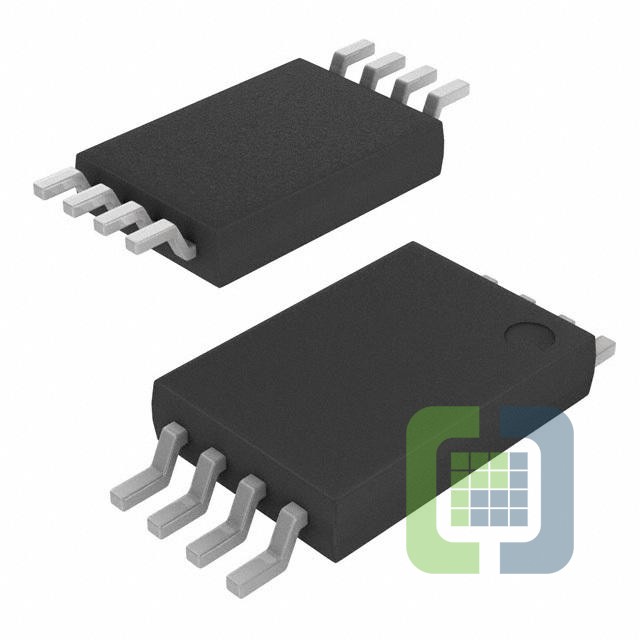

- Package / Case:8-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:8-TSSOP
