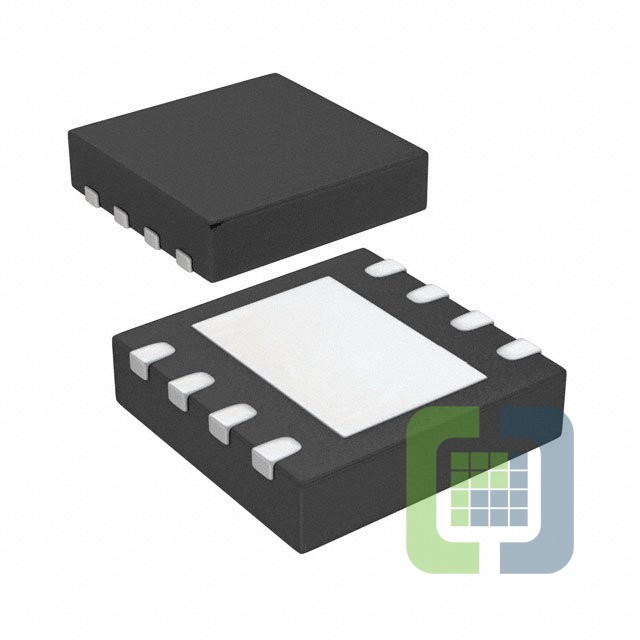

MCP1632-AAE/MC
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 8DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MCP1632-AAE/MC Datasheet
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
- 1$0.871
- 25$0.72884
- 100$0.65683
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Cuk, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 5.5V
- Frequency - Switching:300kHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-VFDFN Exposed Pad
- Supplier Device Package:8-DFN (2x3)
