LM5033SDX/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR PUSH-PULL 10WSON
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$1.03074
- 4,500$1.0098
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):15V ~ 90V
- Frequency - Switching:200kHz, 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

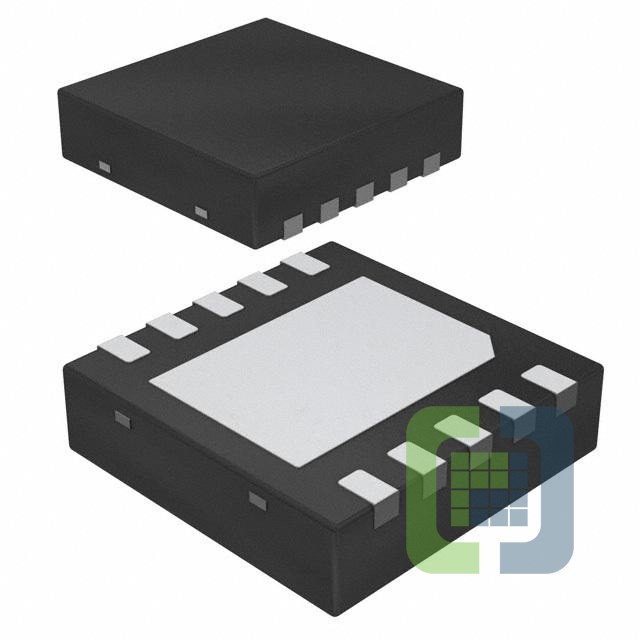

- Package / Case:10-WDFN Exposed Pad
- Supplier Device Package:10-WSON (4x4)
