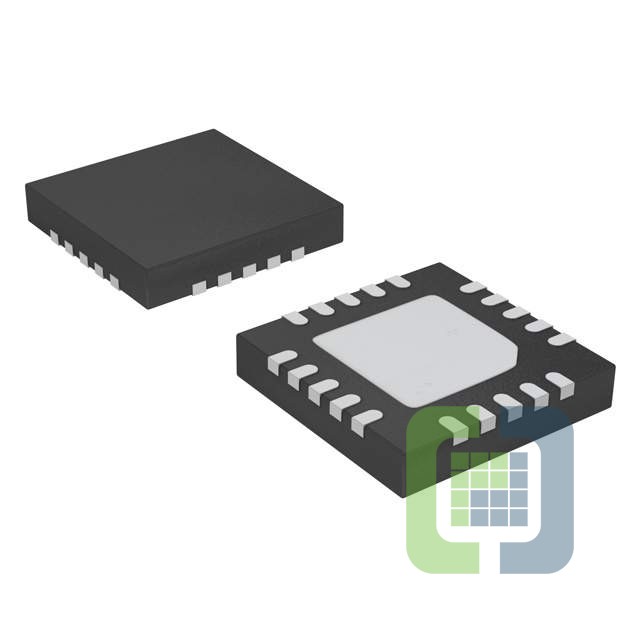

ISL8130IRZ-T7A
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 20QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL8130IRZ-T7A Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$3.2
- 250$2.109
- 500$1.8924
- 1,250$1.596
- 2,500$1.5162
- 6,250$1.4592
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V
- Frequency - Switching:100kHz ~ 1.4MHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-QFN-EP (4x4)
