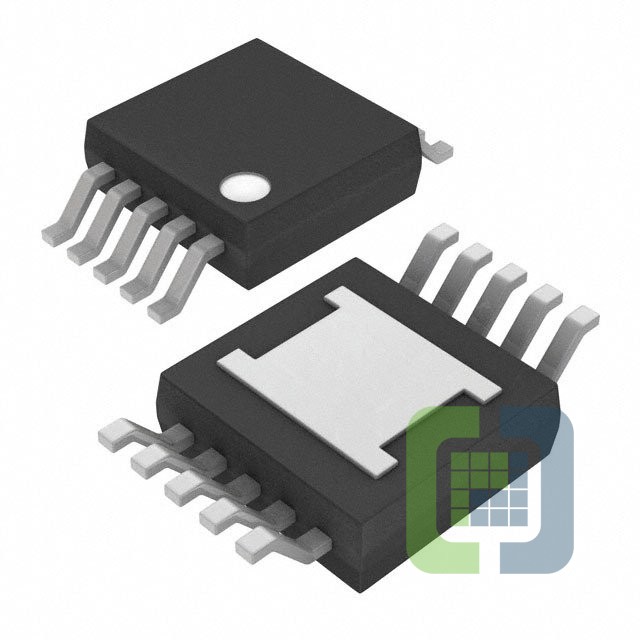

MAX16992AUBB/V+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST/SEPIC 10UMAX
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX16992AUBB/V+ Datasheet
-
ECAD Model
- Share
In Stock: 1,292
Can ship immediately
Pricing:
- 1$2.262
- 200$2.262
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 36V
- Frequency - Switching:1MHz ~ 2.5MHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10uMAX-EP
