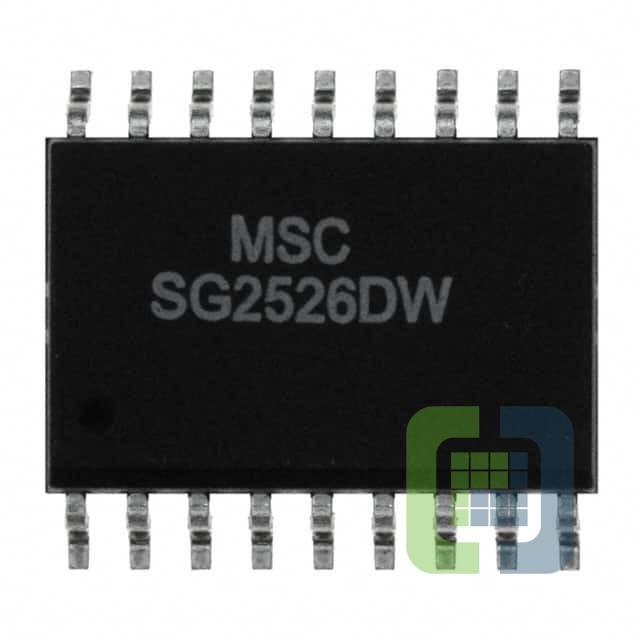

SG2526DW
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK/FLYBACK 18SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet SG2526DW Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:-
- Part Status:Discontinued at Digi-Key
- Output Type:Transistor Driver
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Flyback
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 35V
- Frequency - Switching:1Hz ~ 350kHz
- Duty Cycle (Max):49%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Dead Time Control, Enable, Frequency Control, Reset, Soft Start
- Operating Temperature:-25°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:18-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:18-SOIC
