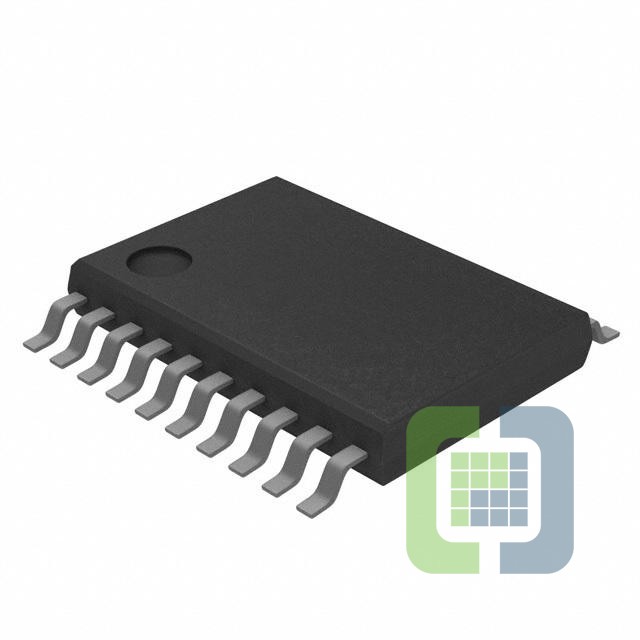

LM3075MTC/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 36V
- Frequency - Switching:200kHz, 300kHz
- Duty Cycle (Max):98%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:20-TSSOP
