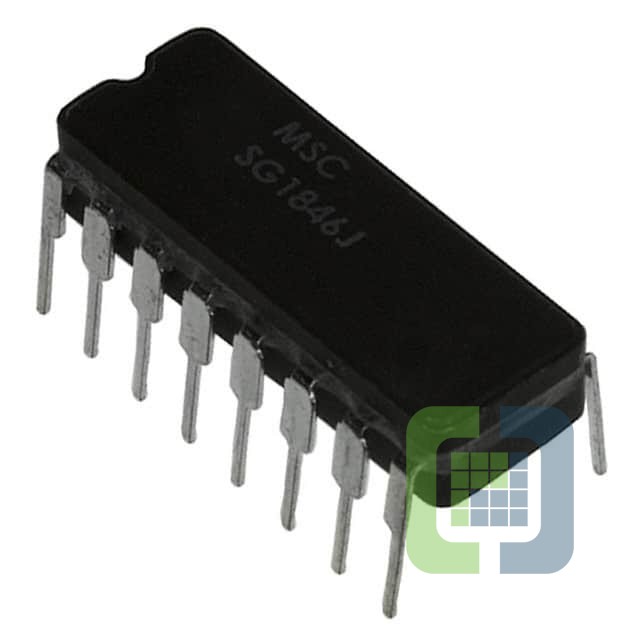

SG1846J
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 16DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet SG1846J Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:-
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 40V
- Frequency - Switching:1Hz ~ 500kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-CDIP (0.300", 7.62mm)
- Supplier Device Package:16-CERDIP
