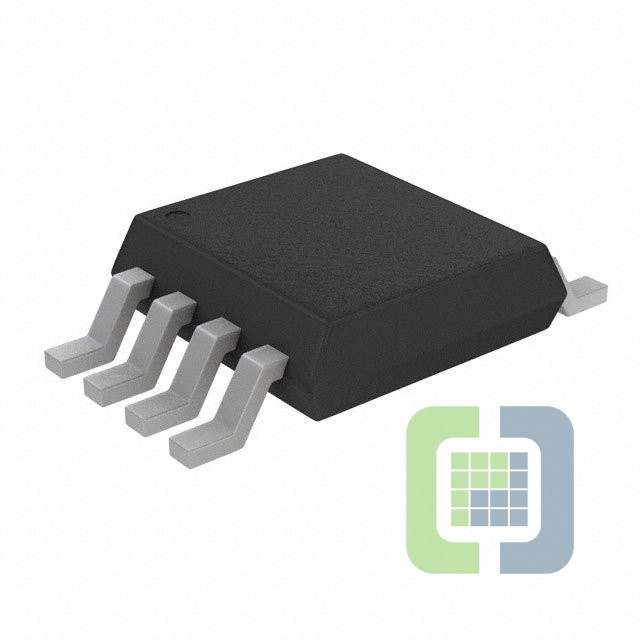

MIC3809BMM
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 8MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MIC3809BMM Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Discontinued at Digi-Key
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2V ~ 14V
- Frequency - Switching:200kHz
- Duty Cycle (Max):49%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-MSOP
