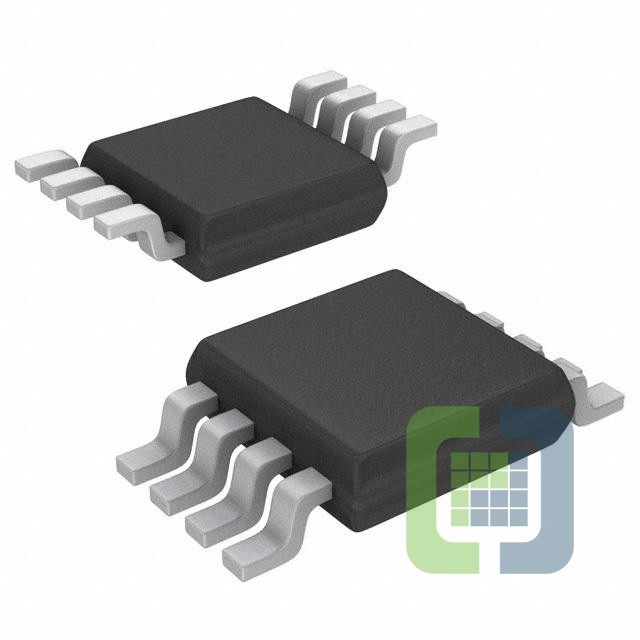

ISL6744AUZ-T
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR MULT TOPOLOGY 8MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL6744AUZ-T Datasheet
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Full-Bridge, Half-Bridge
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):9V ~ 16V
- Frequency - Switching:Up to 1MHz
- Duty Cycle (Max):99%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 105°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-MSOP
