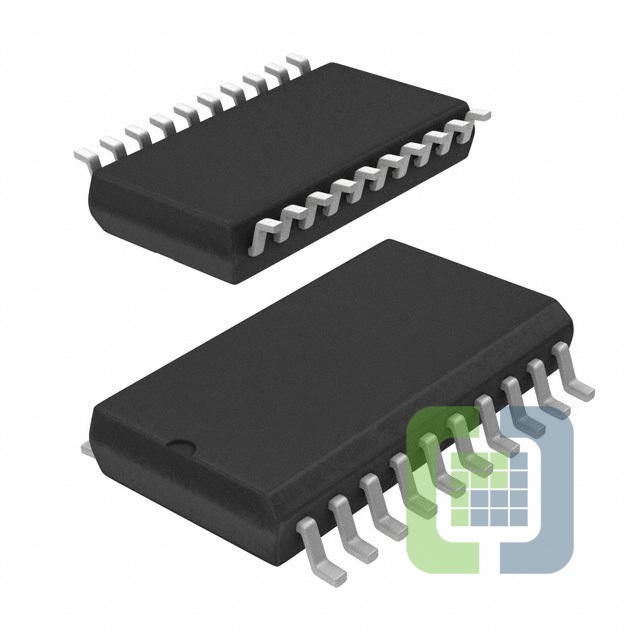

HIP6301VCB
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet HIP6301VCB Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:4
- Output Phases:4
- Voltage - Supply (Vcc/Vdd):4.75V ~ 5.25V
- Frequency - Switching:280kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:-
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:20-SOIC
