ISL6307ACRZ-T
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 48QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL6307ACRZ-T Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:6
- Output Phases:6
- Voltage - Supply (Vcc/Vdd):4.75V ~ 5.25V
- Frequency - Switching:80kHz ~ 2MHz
- Duty Cycle (Max):66.7%
- Synchronous Rectifier:-
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount

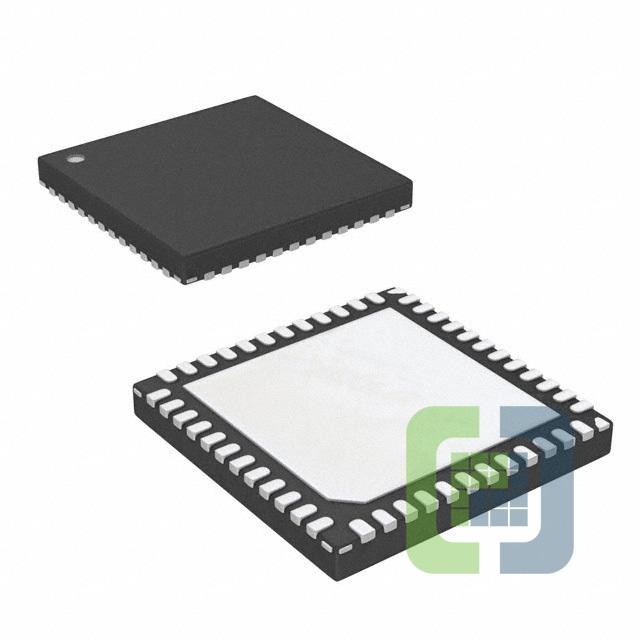

- Package / Case:48-VFQFN Exposed Pad
- Supplier Device Package:48-QFN (7x7)
