ISL6420IRZ-T
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL6420IRZ-T Datasheet
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):5.6V ~ 16V
- Frequency - Switching:100kHz ~ 1.4MHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Phase Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

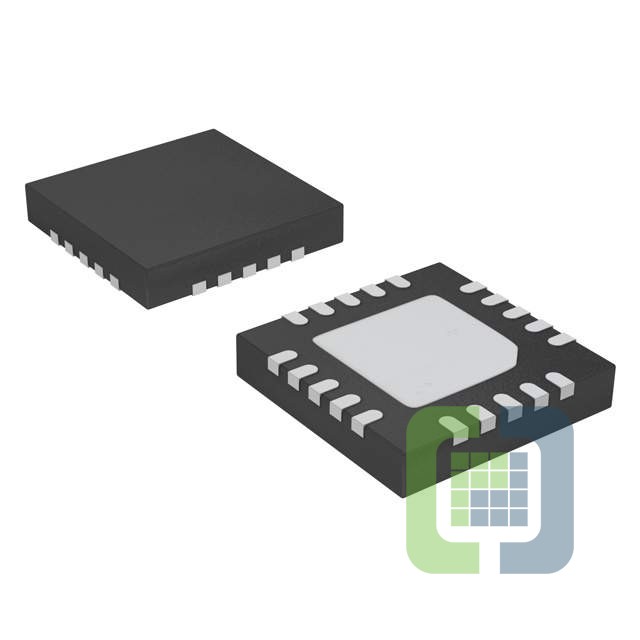

- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-QFN-EP (4x4)
