ISL6551ARZ
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR FULL-BRIDGE 28QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ISL6551ARZ Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Full-Bridge
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):10.8V ~ 13.2V
- Frequency - Switching:50kHz ~ 500kHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Dead Time Control, Enable, Soft Start
- Operating Temperature:-40°C ~ 105°C (TA)
- Mounting Type:Surface Mount

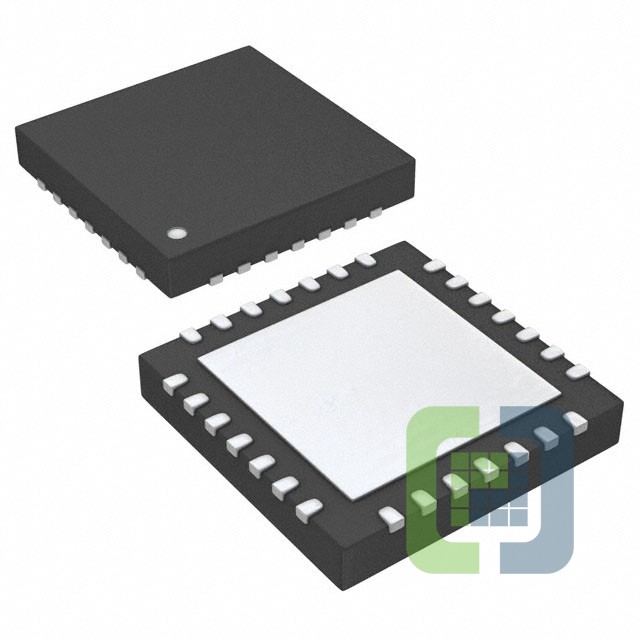

- Package / Case:28-VQFN Exposed Pad
- Supplier Device Package:28-QFN (6x6)
