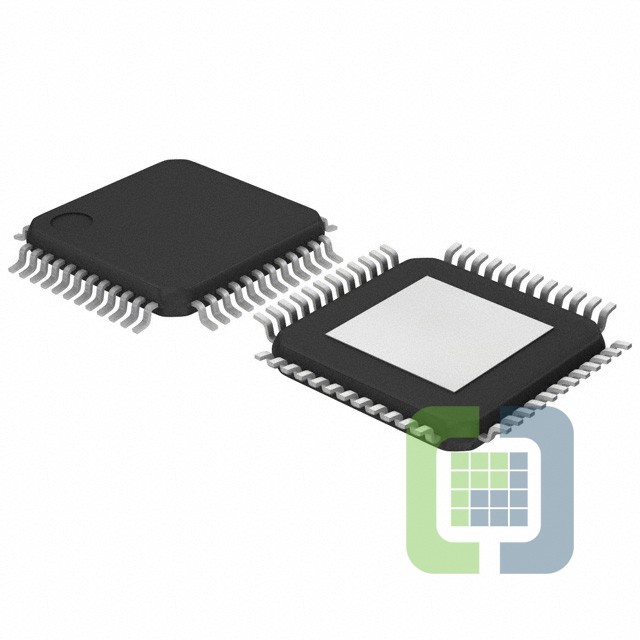

L6711TR
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 48-TQFP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet L6711TR Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:3
- Output Phases:3
- Voltage - Supply (Vcc/Vdd):7.5V ~ 15V
- Frequency - Switching:150kHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Phase Control, Soft Start
- Operating Temperature:0°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:48-TQFP Exposed Pad
- Supplier Device Package:48-TQFP-EP (7x7)
