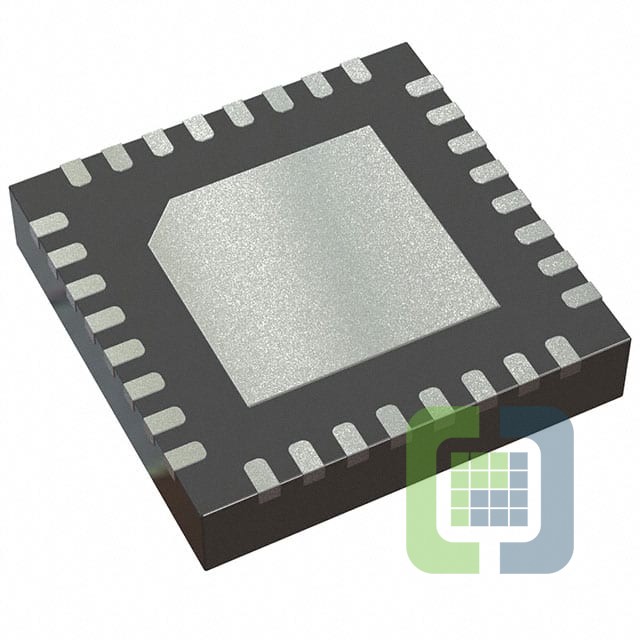

MAX1540ETJ+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 32TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1540ETJ+T Datasheet
-
ECAD Model
- Share
In Stock: 181
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):5.5V ~ 28V
- Frequency - Switching:170kHz ~ 620kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, On Time Control, Power Good, Pulse Skipping, Saturation
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:32-WFQFN Exposed Pad
- Supplier Device Package:32-TQFN (5x5)
